Thông tin chi tiết sản phẩm:
|
| voltage & current: | 250V 5A 10A DC24 8A | Temperature range: | 35 degree to 150 degree |
|---|---|---|---|
| contact type: | normally closed or normally open | switch type: | auto reset |
| life time: | 10000 times | size: | 15*6.6*3.2mm |
| lead wire: | according to client's request | ||
| Điểm nổi bật: | bimetal thermostat switch,temperature protection switch |
||

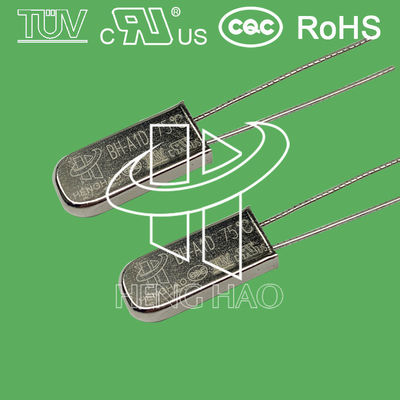

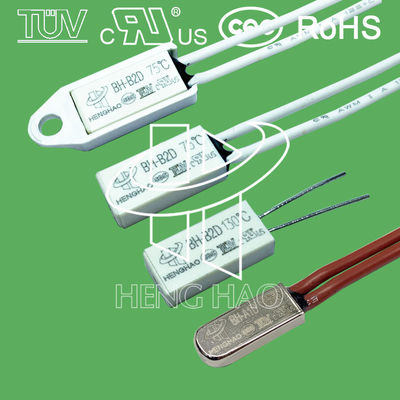

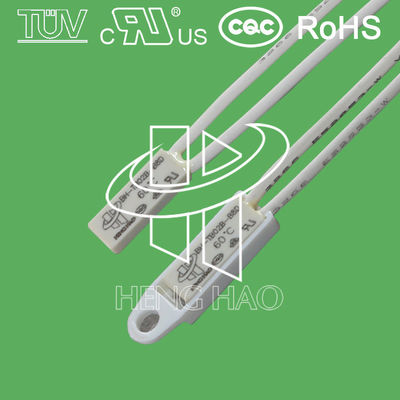

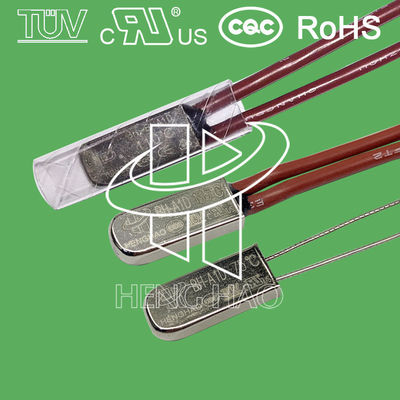

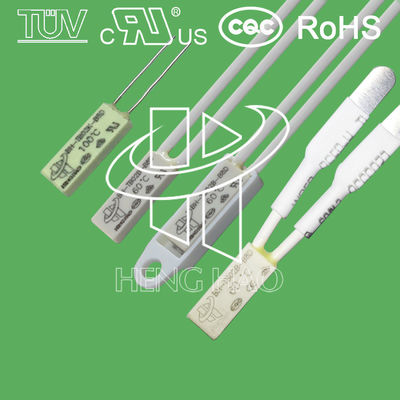

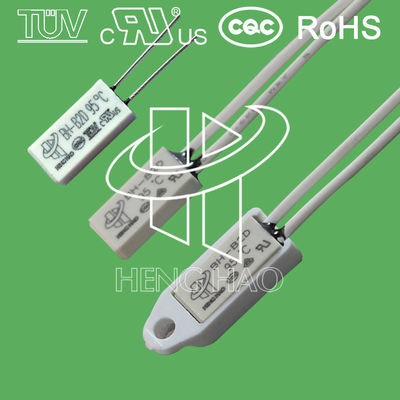

BW-A1D Motor Thermal Protection Switch BH-B2D Overload temperature Protection with UL TUV KC CQC
BW series thermal protector’s Principle and structure
BW series thermal protector is to use a certain geometry of bimetallic strip, without auxiliary institutions, only by bimetallic strip their own sense of mild heating current, rapid changes in the state of bimetallic element, direct drive contact automatic cutting and processing circuit, overheat protection, overload protection.
BW series thermal protector’s application
It is widely applied in Electric motors and electrical equipment as electric blanket, hot wall, washer motor, soybean milk machine motor, Fan motor, air condition motor, fractional motor, direct current motor, AC brushless motor, water pump, transformer, rectifier, lighting, rechargeable battery,electric heating appliance etc.
BW series thermal protector's specification
1. Contact’s type: Normally closed and Normally open
2. Electrical rating: 10A/AC120V; 8A/AC250V; 10A/AC250V; 16A/AC250V
3. Circuit resistance: ≤50mΩ (Initial value)
4. Insulation resistance: ≥100mΩ
5. Action temperature range: 40~150℃
6. Case: metal case and plastic case
7. Life: ≥10,000 times
8. Size:
| Model | Case | Length(mm) | width(mm) | High(mm) | Vol.&Current | Lead wire |
| H20 | Plastic | 18.5 | 8 | 4 | DC-12V max 12A; DC-24V max 10A; AC-125V max 8A; AC-250V max 10A |
#20 3135, end 5mm half tripping, length is 70mm, or according to customer’s require |
| H21 | Metal | 18.5 | 7.3 | 3.8 | ||
| H21 | Metal | 20 | 8 | 4 | AC250V 20A | #16 3135 |
| BH-A1D | Metal | 15 | 6.6 | 3.2 | DC-12V max 12A; DC-24V max 10A; AC-125V max 8A; AC-250V |
#20 3135, #22 3266,#22 3135, end 5mm half tripping, length is 70mm, or according to customer’s require |
| BH-B2D | Plastic | 15 | 7.1 | 3.8 | ||
| BH-TB02B-B8D | Plastic | 15 | 5.2 | 2.4 | DC-12V max 4A; DC-24V max 3A; AC-125V max 3A; AC-250V max 2A | 3266-AWG24#, 3135-AWG24# or nickel strip normally, length is 70 mm or according to customer’s require |
9. Open temperature and reset temperature sheet
|
Code |
Open temp. |
Reset temp. |
Code |
Open temp. |
Reset temp. |
|
40 |
40℃±5℃ |
≥30℃ |
100 |
100℃±5℃ |
70±10℃ |
|
45 |
45℃±5℃ |
≥30℃ |
105 |
105℃±5℃ |
70±12℃ |
|
50 |
50℃±5℃ |
≥30℃ |
110 |
110℃±5℃ |
75±12℃ |
|
55 |
55℃±5℃ |
≥30℃ |
115 |
115℃±5℃ |
80±12℃ |
|
60 |
60℃±5℃ |
40±10℃ |
120 |
120℃±5℃ |
85±12℃ |
|
65 |
65℃±5℃ |
45±10℃ |
125 |
125℃±5℃ |
90±12℃ |
|
70 |
70℃±5℃ |
50±10℃ |
130 |
130℃±5℃ |
95±12℃ |
|
75 |
75℃±5℃ |
55±10℃ |
135 |
135℃±5℃ |
100±12℃ |
|
80 |
80℃±5℃ |
60±10℃ |
140 |
140℃±5℃ |
105±12℃ |
|
85 |
85℃±5℃ |
65±10℃ |
145 |
145℃±5℃ |
110±12℃ |
|
90 |
90℃±5℃ |
70±10℃ |
150 |
150℃±5℃ |
115±12℃ |
|
95 |
95℃±5℃ |
75±10℃ |
|
|
|
BW Thermal protector’s competitive advantage
1. Small size and easy installation
2. Quick bimetallic strip, fast reaction
3. The life time high than 10,000 times
4. Prevention again leak of vacuum impregnation process
5. Replacer of SENSATA 17AM 7AM, SEKI ST-22 etc.
BW series’drawing
