Thông tin chi tiết sản phẩm:
|
| Điểm nổi bật: | miniature thermal switch,micro thermostat switch |
||
|---|---|---|---|

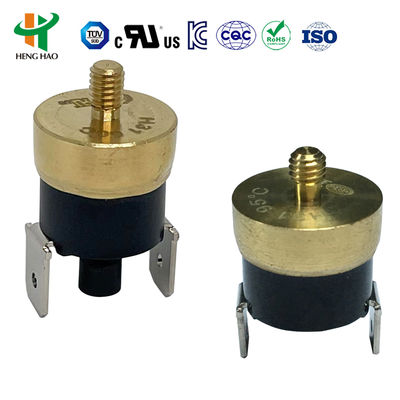

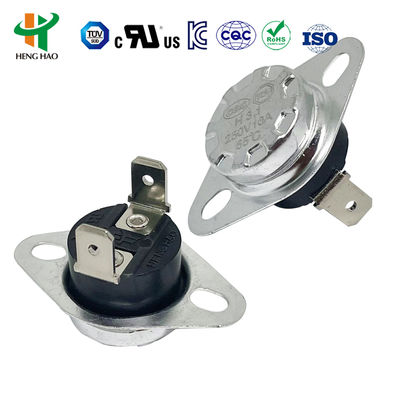

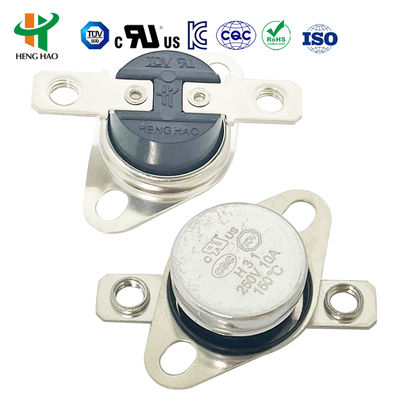

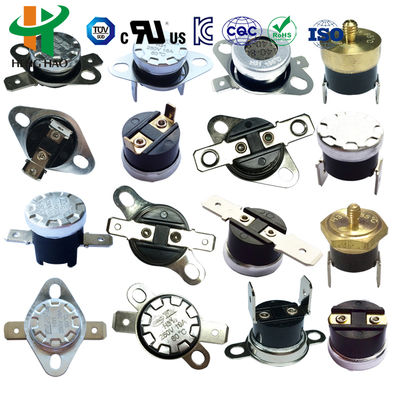

ksd303 bipolar bimetallic thermostat
KSD302 series bipolar thermostat is a bimetal thermostat temperature component, electric work; sheet metal in a free state, the contact is closed / disconnected state when the temperature reaches operating temperature, the bimetallic thermal stresses generated within the tables and rapid movements, open/closed contacts OFF/ON circuit, and thus play areole in temperature control. When the electrical cooling to reset temperature, the contacts automatically closed / opens, to restore normal operation.
Bipolar Thermostat technology specification:
Rating Voltage: 250V
Rating Current: 15A (resistance load), Max. Current: 20A
Action Temperature: 50~200 degree
temperature accuracy: +- 2 +- 3 +- 5 +- 10 ℃
Life-span: 10,000 cycles
Contact Resistance:
Insulation Intensity: Not to be cause electronic breakdown at AC 2 KV for 1 minute at 50 HZ between terminals and cover
Insulation resistance:
The chart of structure and dimension
