Thông tin chi tiết sản phẩm:
|
| Voltage&Current: | 250V 25A TO 60A | Temp. range: | 50 to 180 degree |
|---|---|---|---|
| cap: | copper | materials: | copper, sliver, bakelite |
| working temperature range: | 0 °C ~ 250 °C (optional) | Temperature tolerance: | ± 5 |
| Làm nổi bật: | Bimetallic Thermostat Temperature Switch,KSD302 Thermostat Temperature Switch,Bimetallic KSD302 Thermostat |
||

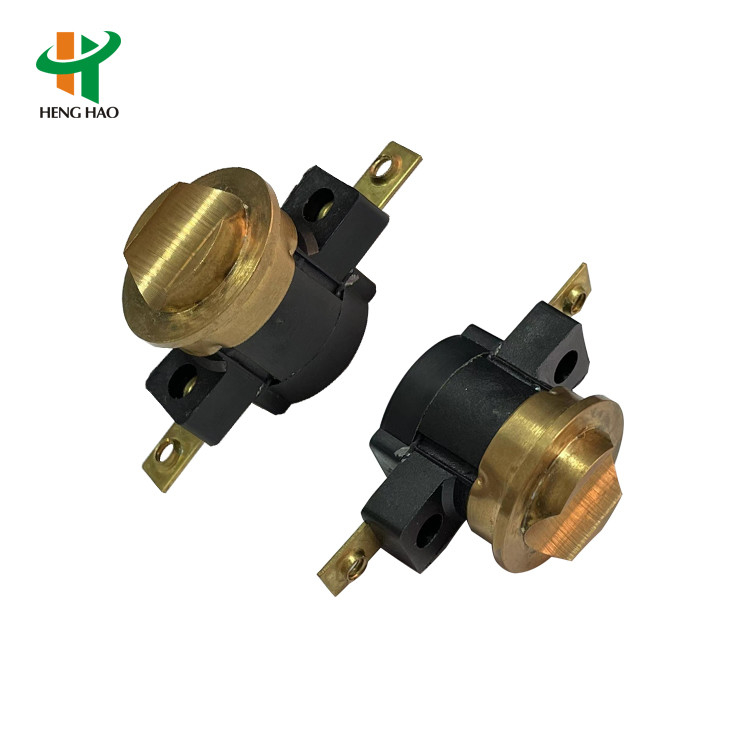

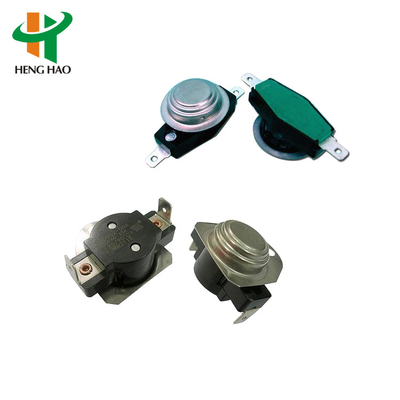

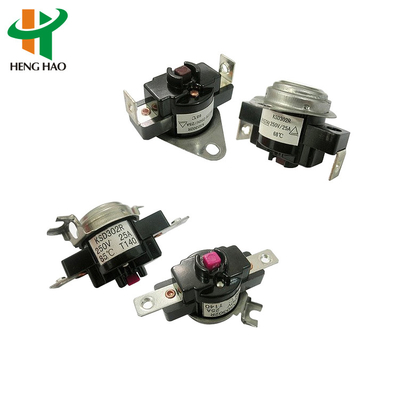

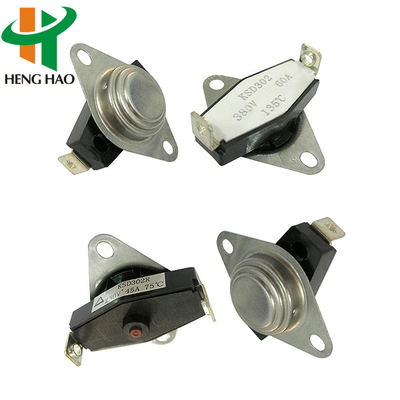

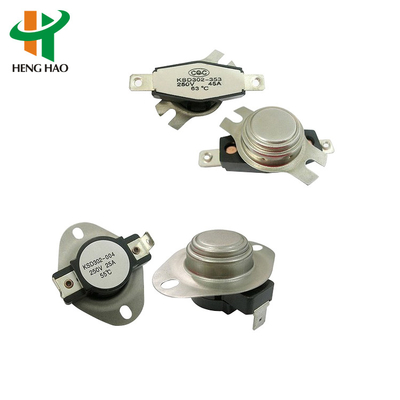

KSD302 copper head bimetallic thermostat temperature switch 250V 15A to 60A
KSD302 KSD303 KSD308
| Function | temperature protection and overheating protection, prevent dry heating |
| The electrical characteristics | AC250V ~ 400 V / 15 A ~ 60 A |
| the highest environment temperature | 180 °C |
| working temperature range | 0 °C ~ 250 °C (optional). Temperature tolerance: ± 5 |
| Normal headscarf insulation resistance | > 100 M Ω |
| normal contact resistance | more than 100 m Ω |
| service life | > 50000 times |
