Thông tin chi tiết sản phẩm:
|
| Application: | motor, light, pump | Supplier Type: | Original manufacturer |
|---|---|---|---|
| Cross Reference: | 8AM | Media Available: | datasheet, Photo |
| Brand: | Thermal temperature protector | Size / Dimension: | 23.3*10.5*4.6mm |
| Operating Temperature: | 50-180 degree centigrate | Switch Function: | ON-OFF |
| Current Rating (Amps): | 10A | Voltage Rating - AC: | 250V |
| Voltage Rating - DC: | 24V | Voltage: | 24 ~ 240V |
| SIZE: | 23*10*4.6mm | life time: | 10000 times |
| Temperature Range: | 50-180C | Voltage and current: | 250V 10A |
| Contact type: | normally closed | Switch Type: | Auto reset thermal protector |
| Port: | Any port from SHENZHEN | ||
| Làm nổi bật: | Motor Thermal Protector Switch,17AM1 Thermal Protector Switch,17AM034A5 Temperature Protector |
||

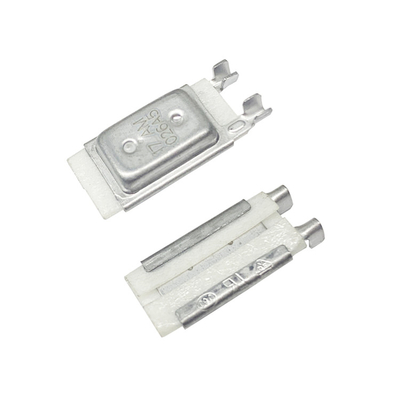

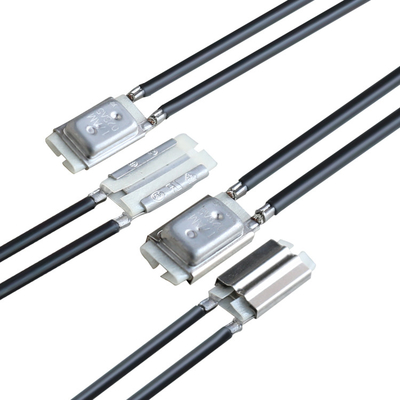

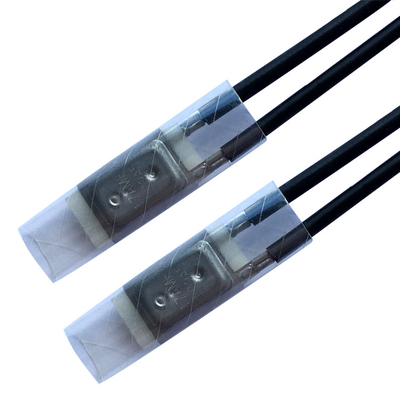

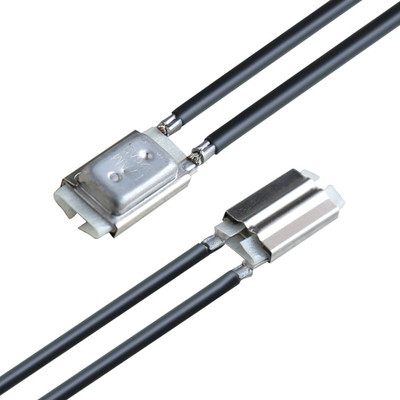

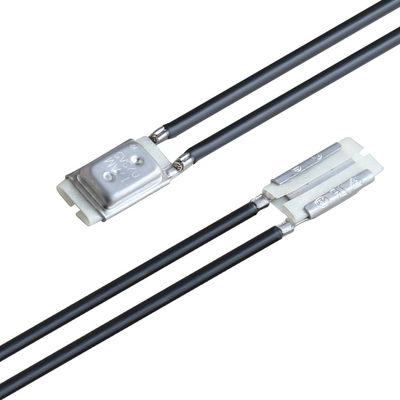

Auto Reset Thermal Protector Switch, 17AM1 Temperature Protector For Motor 17AM034A5
17AMH / 17AMH+PTC thermal protector’s application
17AMH thermal protector is applicable to all kinds of Motor, commentator for fluorescent lamp, transformer, Laminator, lamps and lighting, transformers, cover sealing machine & several of household appliances
17AMH / 17AMH+PTC thermal protector’s Specification
1. Electrical Rating and Currents: AC-125V 15A; AC-250V 10A, DC-16V 20A
2. Contact life cycles: AC-125V 15A, AC-250V 10A more than 10,000 Cycles; AC-125V 5A more than 100,000 Cycles
3. Operating temperature range: 50-180°C
4. Temperature tolerance: ±2°C, ±3°C, ±5°C
5. Reset temperature: 10~45 degrees in off temperature decline.
6. Working times: ≥ 10000 times
7. Code system
17AM XXX A / B 5 A,B,C,D………..Z
(17AMH): The number of product series
(XXX): Trip off temperature in °C Code
(A / B): A: Terminals in the same direction / B: Terminals in the opposite direction
(5): OFF Temperature Tolerance Code
(A, B, C, D………..Z): Different type of connecting wire
8. Trip off temperature in °C Code
|
Degrees °C |
Code |
Degrees °C |
Code |
Degrees °C |
Code |
Degrees °C |
Code |
|
55°C |
018 |
90°C |
025 |
125°C |
032 |
160°C |
039 |
|
60°C |
019 |
95°C |
026 |
130°C |
033 |
165°C |
040 |
|
65°C |
020 |
100°C |
027 |
135°C |
034 |
170°C |
041 |
|
70°C |
021 |
105°C |
028 |
140°C |
035 |
175°C |
042 |
|
75°C |
022 |
110°C |
029 |
145°C |
036 |
180°C |
043 |
|
80°C |
023 |
115°C |
030 |
150°C |
037 |
|
|
|
85°C |
024 |
120°C |
031 |
155°C |
038 |
|
|
17AMH A/°C and A/T Graph
17AMH thermal protector’s drawing
