normally closed or normally open KSD-01F Thermostat , 250V 2A Bimetallic Thermostat

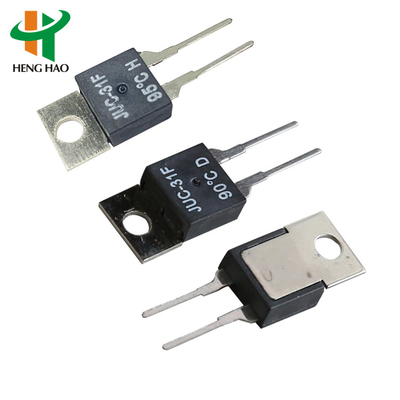

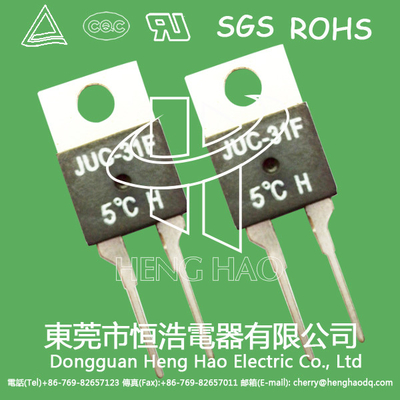

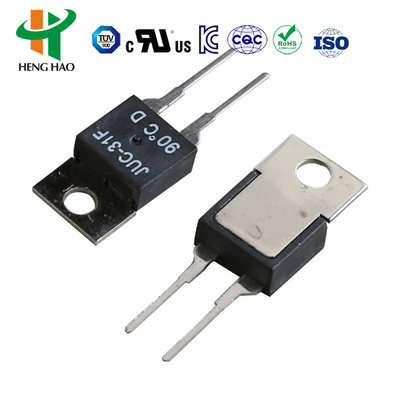

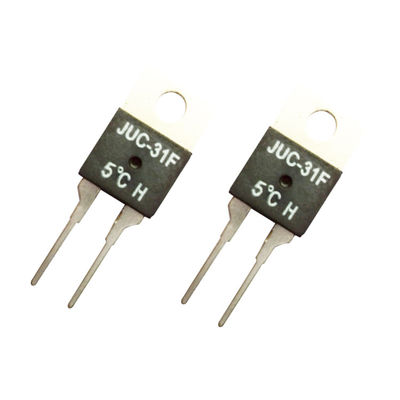

JUC-31F Thermostat / JUC-31F thermal protector / JUC-31F temperature protector

• JUC-31F thermostat’s Principle and structure

The product is a sensor of belonging to touch-type plastic Snap temperature thermostat ,the adoption of international TO220/Y220 standard package ,the product has high reliability ,sensitive and accurate ,small size ,light weight ,very easy to install and so on , very suitable for PCB circuit board / heat equipment/ power device installed Specification

• JUC-31F thermal protector’s Specification

2.1. Contact load: AC 120V 1A; DC48V 1A; AC 220V 1.5A/3A; DC 24V 1.5A/3A

2.2. Contact type : ID (closed)H(open)

2.3. Temperature

2.4. Overheating temperature:250 degrees

2.5. Contact resistance: less than 50mΩ

2.6. Insulation resistance : more than 100 mΩ

2.7. Dielectric withstand voltage: more than 1500V

2.8. Product life: more than 10000 times

2.9. Weight:1.7 g

2.10. Action temperature deviations:+-5 degrees

3. JUC-31F min temperature protector’s Application

JUC-31F thermostat is applicable to Electric equipment, electric product, household appliance, the protection of temperature control, thermal overload in circuit board, Communication power supply , switching power supply,UPS power supply, medical power supply, fire power ,the module power supply ,audio amplifier equipment, various types of rechargeable devieces, rectifiers, inverters, welding equipment ,aerospace instrumentation electronic equipment , automation equipment ,military, Commercial product temperature control or temperature protection..

The product UL,CQC,VDE and RoHS certification approvalThermostat, thermal protector supplier, thermal protector, Thermostat supplier

Thermostat manufacturer

17AMH Thermal protector / 17AMH Thermostat / 17AM temperature protector / instead of KLIXON 17AM thermal protector

• 17AMH thermostat’s Principle and structure

17AM is an excess-current thermal protector with compact design, Quick and accurate action, we can rivet different types of leads according to customers' requirements.

2. 17AM thermal protector’s Specification

2.1. Electrical Rating and Currents: AC-125V 15A; AC-250V 10A, DC-16V 20A

2.2. Contact life cycles: AC-125V 15A, AC-250V 10A more than 10,000 Cycles; AC-125V 5A more than 100,000 Cycles

2.3. Operating temperature range: 50-180°C

2.4. Temperature tolerance: ±2°C±3°C±5°C

2.5. Reset temperature: 10~45 degrees in off temperature decline.

2.6. Working times: Over 10000 times

2.7. Code syste

17AM XXX A / B 5 A,B,C,D………..Z

(17AMH): The number of product series

(XXX): Trip off temperature in °C Code

(A / B): A: Terminals in the same direction / B: Terminals in the opposite direction

(5): OFF Temperature Tolerance Code

(A, B, C, D………..Z): Different type of connecting wire
