9700K Temperature Controller Bimetallic Thermostat with 0-250℃ Range 100000 Cycles and Bakelite Case for Reliable Overload Protection

9700K Temperature Controller Bimetallic Thermostat with 0-250℃ Range 100000 Cycles and Bakelite Case for Reliable Overload Protection
9700K Temperature Controller Bimetallic Thermostat with 0-250℃ Range 100000 Cycles and Bakelite Case for Reliable Overload Protection
9700K Temperature Controller Bimetallic Thermostat with 0-250℃ Range 100000 Cycles and Bakelite Case for Reliable Overload Protection 9700K Temperature Controller Bimetallic Thermostat with 0-250℃ Range 100000 Cycles and Bakelite Case for Reliable Overload Protection 9700K Temperature Controller Bimetallic Thermostat with 0-250℃ Range 100000 Cycles and Bakelite Case for Reliable Overload Protection 9700K Temperature Controller Bimetallic Thermostat with 0-250℃ Range 100000 Cycles and Bakelite Case for Reliable Overload Protection 9700K Temperature Controller Bimetallic Thermostat with 0-250℃ Range 100000 Cycles and Bakelite Case for Reliable Overload Protection 9700K Temperature Controller Bimetallic Thermostat with 0-250℃ Range 100000 Cycles and Bakelite Case for Reliable Overload Protection 9700K Temperature Controller Bimetallic Thermostat with 0-250℃ Range 100000 Cycles and Bakelite Case for Reliable Overload Protection

Hình ảnh lớn :  9700K Temperature Controller Bimetallic Thermostat with 0-250℃ Range 100000 Cycles and Bakelite Case for Reliable Overload Protection

Thông tin chi tiết sản phẩm:
Nguồn gốc: Trung Quốc
Hàng hiệu: HENGHAO
Chứng nhận: UL TUV CQC
Số mô hình: bw-abs
Thanh toán:
Số lượng đặt hàng tối thiểu: 1000pcs
Giá bán: USD 0.1~0.5PCS
chi tiết đóng gói: 2000 chiếc / thùng
Thời gian giao hàng: 10 ~ 15WorkDays
Điều khoản thanh toán: T/t
Khả năng cung cấp: 10000000 chiếc mỗi tháng
Tiếp xúc

9700K Temperature Controller Bimetallic Thermostat with 0-250℃ Range 100000 Cycles and Bakelite Case for Reliable Overload Protection

Sự miêu tả
Vòng đời: 100000 chu kỳ Điện áp & dòng điện: 250V 16A
Loại liên hệ: thường đóng hoặc thường mở Loại chuyển đổi: Đặt lại tự động hoặc đặt lại thủ công
Phạm vi nhiệt độ: 0-250℃ trường hợp: Bakelite
Làm nổi bật:

0-250℃ Temperature Range Bimetallic Thermostat

,

100000 Cycles Temperature Controller

,

Bakelite Case Thermal Overload Protector Switch

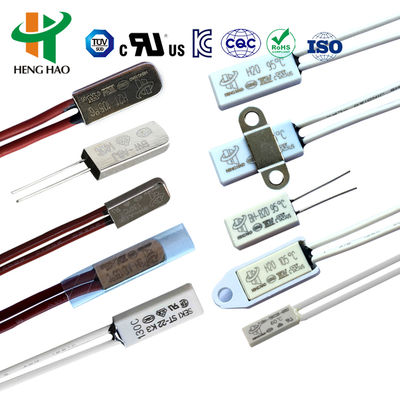

9700K Temperature Controller ST-22 Bimetallic Thermostat H20 H21 Thermostat
The 9700K series provides reliable protection against over-current and over-temperature conditions. These sealed thermostats feature small internal resistance, operate silently, and reset automatically. The bimetallic components respond to temperature and current changes, cutting off or restoring the circuit as needed for enhanced safety.
9700K Temperature Controller Bimetallic Thermostat with 0-250℃ Range 100000 Cycles and Bakelite Case for Reliable Overload Protection 0
9700 Thermostat Specifications
Electrical Rating DC-12V max 12A; DC-24V max 10A; AC-125V max 8A; AC-250V max 16A
Open temperature (30~150)±5°C; 5°C a step
Reset temperature 2/3 of the action temperature with tolerance of ±15°C. Custom reset temperatures available.
Life times 10000 cycles
Size L15mm W7.1mm H3.8mm
Lead wire #22 3266, end half tripping, length is 70mm (customizable)
UL File no E487478
CQC certificate no CQC16002142880
TUV certificate no B160592241002

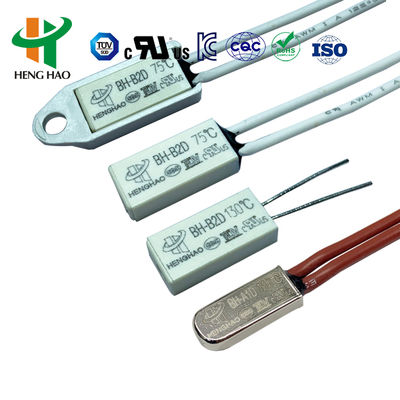

9700 Series Thermal Protector Dimensions
Model Case Length(mm) Width(mm) Height(mm) Voltage & Current Lead Wire
H20 Plastic 18.5 8 4 DC-12V max 12A; DC-24V max 10A; AC-125V max 8A; AC-250V max 10A #20 3135, end 5mm half tripping, length is 70mm (customizable)
H21 Metal 18.5 7.3 3.8
H21 Metal 20 8 4 AC250V 20A #16 3135
BH-A1D Metal 15 6.6 3.2 DC-12V max 12A; DC-24V max 10A; AC-125V max 8A; AC-250V #20 3135, #22 3266, #22 3135, end 5mm half tripping, length is 70mm (customizable)
BH-B2D Plastic 15 7.1 3.8
BH-TB02B-B8D Plastic 15 5.2 2.4 DC-12V max 4A; DC-24V max 3A; AC-125V max 3A; AC-250V max 2A 3266-AWG24#, 3135-AWG24# or nickel strip normally, length is 70mm (customizable)
Temperature Code Reference
Code Temperature Code Temperature
30 30℃ 100 100℃
35 35℃ 105 105℃
40 40℃ 110 110℃
45 45℃ 115 115℃
50 50℃ 120 120℃
55 55℃ 125 125℃
60 60℃ 130 130℃
70 70℃ 135 135℃
75 75℃ 140 140℃
80 80℃ 145 145℃
85 85℃ 150 150℃
90 90℃
Applications

These thermostats serve as effective security protectors and alarm devices for:

  • 1.5 horsepower motors
  • Inverter welding machines
  • Switch power supplies
  • Fluorescent lamp ballasts
  • Electric appliances
  • Other electrical equipment requiring over-current and over-heating protection

Enforced types (3.5MPa pressure rating) are suitable for build-in installation in plastic coated motors.

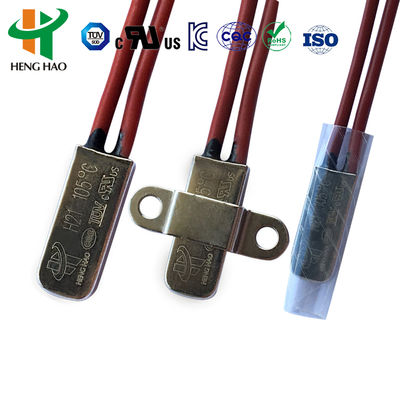

H20/H21 Series Principle and Structure

These universal and enhanced protectors feature large metal casings containing:

  • Thermal conductive metal casing
  • Bimetallic parts with silver alloy contact points
  • Conductive bracket
  • Insulation fixation stand
  • Fixed contact strip
  • Heat resistance cable

During abnormal operation, rising temperatures trigger the bimetallic components to quickly open the contact points and disconnect the circuit. Normal operation resumes automatically when temperatures return to safe levels.

Certifications

This product holds UL, CQC, TUV and RoHS certifications.

9700K Temperature Controller Bimetallic Thermostat with 0-250℃ Range 100000 Cycles and Bakelite Case for Reliable Overload Protection 1
