KSD301 Bimetal Thermostat Temperature Protector with Plastic or Ceramic Housing Aluminum Cap or Copper Head and 100000 Cycles Life

KSD301 Bimetal Thermostat Temperature Protector with Plastic or Ceramic Housing Aluminum Cap or Copper Head and 100000 Cycles Life
KSD301 Bimetal Thermostat Temperature Protector with Plastic or Ceramic Housing Aluminum Cap or Copper Head and 100000 Cycles Life
KSD301 Bimetal Thermostat Temperature Protector with Plastic or Ceramic Housing Aluminum Cap or Copper Head and 100000 Cycles Life KSD301 Bimetal Thermostat Temperature Protector with Plastic or Ceramic Housing Aluminum Cap or Copper Head and 100000 Cycles Life KSD301 Bimetal Thermostat Temperature Protector with Plastic or Ceramic Housing Aluminum Cap or Copper Head and 100000 Cycles Life KSD301 Bimetal Thermostat Temperature Protector with Plastic or Ceramic Housing Aluminum Cap or Copper Head and 100000 Cycles Life KSD301 Bimetal Thermostat Temperature Protector with Plastic or Ceramic Housing Aluminum Cap or Copper Head and 100000 Cycles Life KSD301 Bimetal Thermostat Temperature Protector with Plastic or Ceramic Housing Aluminum Cap or Copper Head and 100000 Cycles Life KSD301 Bimetal Thermostat Temperature Protector with Plastic or Ceramic Housing Aluminum Cap or Copper Head and 100000 Cycles Life

Hình ảnh lớn :  KSD301 Bimetal Thermostat Temperature Protector with Plastic or Ceramic Housing Aluminum Cap or Copper Head and 100000 Cycles Life

Thông tin chi tiết sản phẩm:
Nguồn gốc: Trung Quốc
Hàng hiệu: HENGHAO
Chứng nhận: UL
Số mô hình: KSD201
Thanh toán:
Số lượng đặt hàng tối thiểu: 1000
Giá bán: USD 0.15
chi tiết đóng gói: 2100 CÁI/THÙNG
Thời gian giao hàng: 10 ~ 15WorkDays
Điều khoản thanh toán: T/t
Khả năng cung cấp: 100000pcs mỗi tháng
Tiếp xúc

KSD301 Bimetal Thermostat Temperature Protector with Plastic or Ceramic Housing Aluminum Cap or Copper Head and 100000 Cycles Life

Sự miêu tả
Vòng đời: 100000 chu kỳ Điện áp & dòng điện: 250V 16A
Loại liên hệ: thường đóng hoặc thường mở Loại chuyển đổi: Đặt lại tự động hoặc đặt lại thủ công
Làm nổi bật:

Plastic or Ceramic Housing KSD301 Bimetal Thermostat

,

Aluminum Cap or Copper Head Temperature Protector

,

100000 Cycles Temperature Controlled Switch

Temperature Controlled Switch KSD301-R Temperature Protector
The KSD301 series thermostat operates on the principle of bimetal discs that snap into action with temperature changes. This snap action activates internal contacts to open or close circuits. Key features include fixed working temperatures, reliable snap action, minimal flashover, long service life, and reduced radio interference.

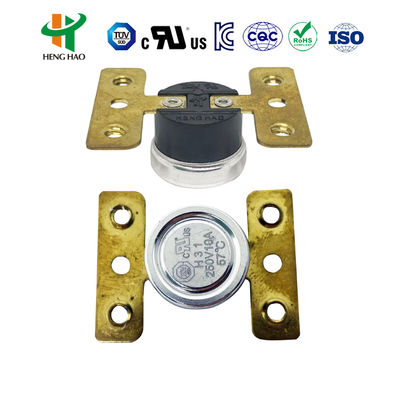

KSD301 Bimetal Thermostat Temperature Protector with Plastic or Ceramic Housing Aluminum Cap or Copper Head and 100000 Cycles Life 0
KSD301 Thermostat Specifications
Parameter Specification
Voltage & Current AC 125V max 15A; AC250V 5A 10A 15A max 16A
Action Temperature 0~250℃
Recovery and action temperature difference 0 to 25 degrees, or according to client's request
Temperature deviation ±3 / ±5 / ±10 degree or according to client's request
Circuit resistance ≤50mΩ (Initial value)
Insulation resistance AC50Hz 1500V / min, no breakdown blinding (Normal State)
Life cycle ≥100000 times
Contact type Normally closed or Normally open
Mounting bracket Two kinds: movable or immovable
Terminal type a. Terminal type: 187series of 4.8*0.5mm and 4.8*0.8mm, 250 series of 6.3*0.8mm
b. Terminal Angle: bending angle: 0~90°C optional
Housing Plastic or ceramic
Temperature sensor face Aluminum cap or copper head

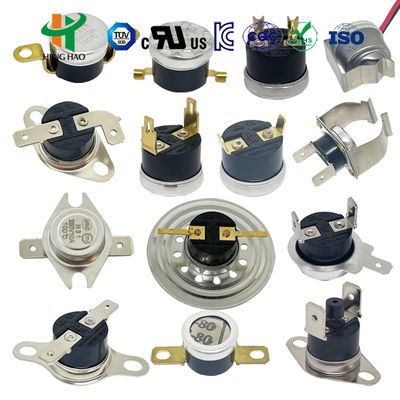

KSD301 Bimetal Thermostat Temperature Protector with Plastic or Ceramic Housing Aluminum Cap or Copper Head and 100000 Cycles Life 1
KSD301 Auto Reset vs Manual Reset Types
Manual Reset Type
The temperature sensing components consist of bimetallic strips. When reaching the action temperature range, the disc jumps quickly to disconnect. The contacts won't reset until the circuit is manually reconnected by pressing the reset button (requires 4-6N force). The temperature must decline by 20°C after snap action before resetting. For proper function, maintain at least 20.4mm between reset button and cover.
Auto Reset Type
Similar bimetallic strip components automatically reset when temperature declines to a fixed point, restarting operation without manual intervention.
KSD301 Bimetal Thermostat Applications
Widely used for temperature control in household appliances including:
  • Coffee pots
  • Automatic toasters
  • Laminators
  • Electric water pots
  • Steam guns
  • Steam irons
  • Wind warmers
  • Microwave ovens
  • Water dispensers
Temperature Settings
Open Temp. Reset Temp. Open Temp. Reset Temp. Open Temp. Reset Temp.
-20℃±5℃ 5℃±5℃ 95℃±5℃ 80℃±5℃ 205℃±5℃ 175℃±10℃
-15℃±5℃ 5℃±5℃ 100℃±5℃ 80℃±10℃ 210℃±5℃ 180℃±10℃
-10℃±5℃ 5℃±5℃ 105℃±5℃ 85℃±10℃ 215℃±5℃ 185℃±10℃
Custom temperature settings available according to client requirements
This product has UL, CQC, TUV and RoHS certification approval.

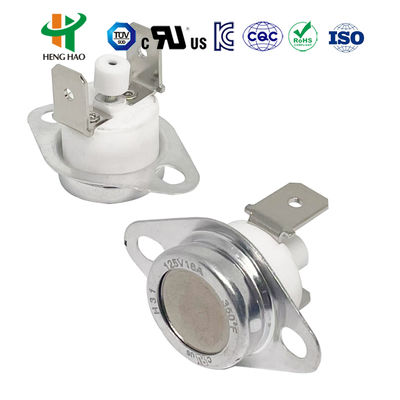

KSD301 Bimetal Thermostat Temperature Protector with Plastic or Ceramic Housing Aluminum Cap or Copper Head and 100000 Cycles Life 2
