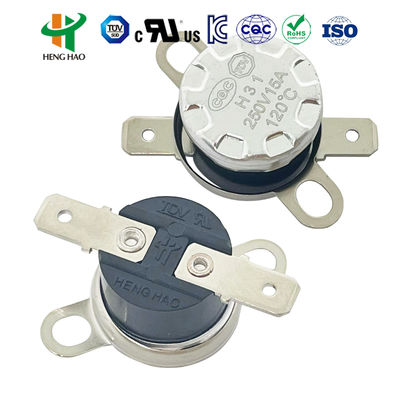

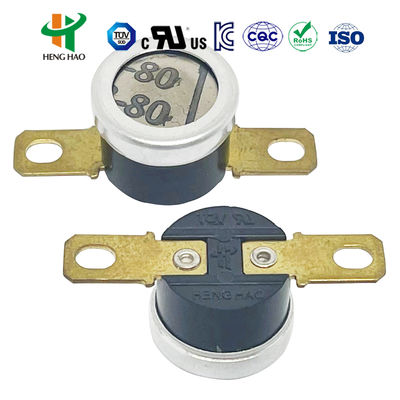

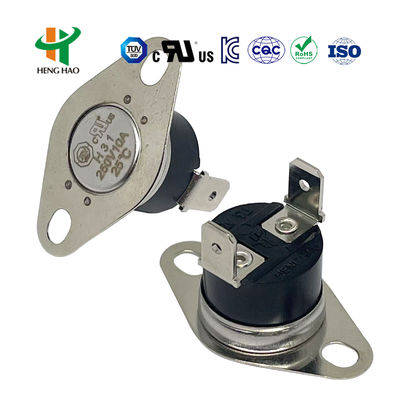

KSD301 Bimetal Thermostat 250V 16A for Coffee Pots and Automatic Toasters with 100000 Cycles

KSD301 Bimetal Thermostat 250V 16A for Coffee Pots and Automatic Toasters with 100000 Cycles
KSD301 Bimetal Thermostat 250V 16A for Coffee Pots and Automatic Toasters with 100000 Cycles
KSD301 Bimetal Thermostat 250V 16A for Coffee Pots and Automatic Toasters with 100000 Cycles KSD301 Bimetal Thermostat 250V 16A for Coffee Pots and Automatic Toasters with 100000 Cycles KSD301 Bimetal Thermostat 250V 16A for Coffee Pots and Automatic Toasters with 100000 Cycles KSD301 Bimetal Thermostat 250V 16A for Coffee Pots and Automatic Toasters with 100000 Cycles KSD301 Bimetal Thermostat 250V 16A for Coffee Pots and Automatic Toasters with 100000 Cycles KSD301 Bimetal Thermostat 250V 16A for Coffee Pots and Automatic Toasters with 100000 Cycles KSD301 Bimetal Thermostat 250V 16A for Coffee Pots and Automatic Toasters with 100000 Cycles KSD301 Bimetal Thermostat 250V 16A for Coffee Pots and Automatic Toasters with 100000 Cycles

Hình ảnh lớn :  KSD301 Bimetal Thermostat 250V 16A for Coffee Pots and Automatic Toasters with 100000 Cycles

Thông tin chi tiết sản phẩm:
Nguồn gốc: Trung Quốc
Hàng hiệu: HENGHAO
Chứng nhận: UL
Số mô hình: H31
Thanh toán:
Số lượng đặt hàng tối thiểu: 1000pcs
Giá bán: USD 0.3~0.5PCS
chi tiết đóng gói: 2000pcs/carton
Thời gian giao hàng: 10~15 ngày làm việc
Điều khoản thanh toán: T/t
Khả năng cung cấp: 1000000pc mỗi tháng
Tiếp xúc

KSD301 Bimetal Thermostat 250V 16A for Coffee Pots and Automatic Toasters with 100000 Cycles

Sự miêu tả
Vòng đời: 100000 chu kỳ Điện áp & dòng điện: 250V 16A
Loại liên hệ: thường đóng hoặc thường mở Loại chuyển đổi: Đặt lại tự động hoặc đặt lại thủ công
Phạm vi nhiệt độ: 0-250℃ trường hợp: Kim loại
Làm nổi bật:

250V 16A Bimetal Thermostat

,

Coffee Pots Temperature Controller

,

Automatic Toasters KSD301 Thermostat

KSD301-G Ksd301 Temperature Controller Thermostat 250V 16A
The KSD301 temperature protector operates on the principle of bimetal discs that snap into action with temperature changes. This snap action activates the internal contacts to open or close the circuit. Key features include fixed working temperature, reliable snap action, minimal flashover, long service life, and low radio interference.
Download KSD301 Specifications (PDF) KSD301 Bimetal Thermostat 250V 16A for Coffee Pots and Automatic Toasters with 100000 Cycles 0
Technical Specifications
Parameter Specification
Voltage & Current AC 125V max 15A; AC250V 5A 10A 15A max 16A
Action Temperature 0~250℃
Recovery and action temperature difference 0 to 25 degrees, or according to client's request
Temperature deviation ±3 / ±5 / ±10 degree or according to client's request
Circuit resistance ≤50mΩ (Initial value)
Insulation resistance AC50Hz 1500V / min, no breakdown blinding (Normal State)
Life cycle ≥100000 times
Contact type Normally closed or Normally open
Mounting bracket Two types: movable or immovable
Terminal type a. Terminal type: 187series of 4.8*0.5mm and 4.8*0.8mm, 250 series of 6.3*0.8mm
b. Terminal Angle: bending angle: 0~90°C optional
Housing Plastic or ceramic
Temperature sensor face Aluminum cap or copper head
Reset Types
Manual Reset Type: Requires pressing a reset button to reconnect the circuit after temperature drops approximately 20°C from the action point. Recommended reset force is 4-6N.
Auto Reset Type: Automatically reconnects when temperature drops to the reset point without manual intervention.
Applications
Widely used for temperature control in household appliances including coffee pots, toasters, laminators, electric water pots, steam guns, steam irons, wind warmers, microwave ovens, and water dispensers.
Temperature Settings
Open Temp. Reset Temp. Open Temp. Reset Temp. Open Temp. Reset Temp.
-20℃±5℃ 5℃±5℃ 95℃±5℃ 80℃±5℃ 205℃±5℃ 175℃±10℃
-15℃±5℃ 5℃±5℃ 100℃±5℃ 80℃±10℃ 210℃±5℃ 180℃±10℃
-10℃±5℃ 5℃±5℃ 105℃±5℃ 85℃±10℃ 215℃±5℃ 185℃±10℃
0℃±5℃ -10℃±5℃ 110℃±5℃ 90℃±10℃ 220℃±5℃ 190℃±10℃
5℃±5℃ -5℃±5℃ 115℃±5℃ 95℃±10℃ 225℃±5℃ 195℃±10℃
10℃±5℃ 0℃±5℃ 120℃±5℃ 100℃±10℃ 230℃±5℃ 200℃±10℃
15℃±5℃ 5℃±5℃ 125℃±5℃ 105℃±10℃ 235℃±5℃ 205℃±10℃
20℃±5℃ 5℃±5℃ 130℃±5℃ 110℃±10℃ 240℃±5℃ 210℃±10℃
25℃±5℃ 10℃±5℃ 135℃±5℃ 115℃±10℃ 245℃±5℃ 215℃±10℃
30℃±5℃ 15℃±5℃ 140℃±5℃ 120℃±10℃ 250℃±5℃ 220℃±10℃
Custom temperature settings available according to client requirements.
Certifications: UL, CQC, TUV and RoHS approved.
KSD301 Bimetal Thermostat 250V 16A for Coffee Pots and Automatic Toasters with 100000 Cycles 1

Từ khóa:

ksd301 thermal switch,

bimetal snap disc thermostat,

ksd301 temperature switch
