Thông tin chi tiết sản phẩm:
|
| Mẫu số: | NTC PT100 | Loại liên hệ: | không tiếp xúc |
|---|---|---|---|
| Tín hiệu đầu ra: | nhiệt điện trở | Quá trình sản xuất: | tiêm |
| Vật liệu: | Điện trở lithium clorua | Xếp hạng IP: | IP65 |
| Loại đầu: | Ống kim loại hoặc nhựa | giá trị B: | 3950K 3435K 3977K PT100 |
| kháng chiến danh nghĩa: | 5K, 8K, 10K, 15K đến 100K | Giá trị B25/50: | 2500 ~ 5000K |
| hệ số tản: | ≥0,8mw/oC | Hằng số thời gian nhiệt: | ≤25s |
| Nhiệt độ làm việc: | -40oC~+250oC | Công suất định mức: | 50mW |
| Phạm vi nhiệt độ: | -50 đến 500oC | ||
| Làm nổi bật: | Thread Head NTC temperature sensor,PT100 thermal sensor switch,R J thermocouple temperature probe |
||
| Specification Name | Scope | Detection Condition |
|---|---|---|
| R25(nominal resistance value) | 5K,8K,10K,15K to 100K | Constant temperature 25ºC±0.05ºC |
| R25 Permissible variance(%) | ±1,±2, ±3, ±5, ±10 | Constant temperature 25ºC±0.05ºC |
| B25/50 or B25/85(material coefficient)(thermal-sensitivity index) | 2500~5000K | Constant temperature 25ºC±0.05ºC Constant temperature 85ºC±0.05ºC |
| B25/50 Value permissible variance(%) | ±1,±2 | Constant temperature 25ºC±0.05ºC Constant temperature 50ºC±0.05ºC |
| ∫(dissipation coefficient) | ≥0.8mw/ºC | Static in the air |
| T(thermal time constant) | ≤25S | Static in the air |
| Ta(Working temperature) | -40ºC~+250ºC | |
| Pn (rated power) | 50mw | within working temperature |

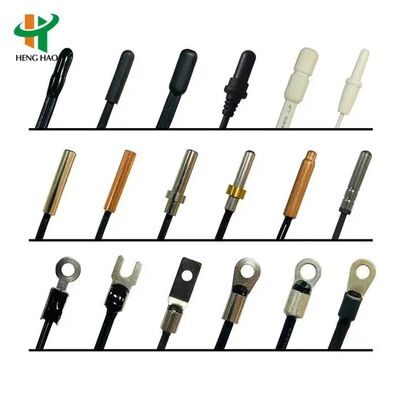

| Case and head | Fork head, O ring head,drops of water head, Metal case, Thread copper case, injection head, or according to client's drawing | |
| Lead wire | #24 30# 2651, UL4411 28#, double wired conductor and so on, or according to client's request. | |
| Terminal | Can be riveted according to the requirements of various terminals | |
| Product name | PT100 temperature sensor (Thermocouples, hot resistance) |
|---|---|
| Graduation number | PT100, CU50,PT1000,K,E,J,T etc. |
| Temperature range | -50 to 500ºC |
| Chip imported from | Heraeus - Germany |
| Temperature probe | 304 stainless steel, plastic or other according to client's request |
| Accuracy Grade | A Grade (0.1),B Grade(0.3),2B Grade (0.5),1/3 B Grade(0.1) |
| Temperature probe | 4*30mm, or according to client's request to design. |
| Thermal time constant | 0.5S |
| Lead wire |
Three core sliver tetrafluoride shielded wire (-50~200ºC) Silicone wire(-200~200ºC) Three core high temperature wire(-40~450ºC) Four fluorine wire (-50~150ºC) |
| Dia | 3mm~16mm |
| terminal | Y type, Pin,XH2.54 or according to client's request. |
| Level of protection | IP68 |
